xTool S1 Conveyor Feeder: Expanding Your Laser Workspace

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Laser crafters expanding into oversized projects or high-volume item runs quickly run into the physical limits of an enclosed diode laser bed. The xTool S1 Conveyor Feeder solves this bottleneck by turning the stationary laser cutter into an automated pass-through production station. If you regularly engrave long wooden signs, customized porch boards, leather belts, or continuous panels, adding this motorized extension transforms how the machine operates. Instead of repositioning stock by hand and risking split cut lines or misregistered graphics, the feeder systematically rolls material through the processing chamber with synchronized precision.

Before investing in this hardware, you need to understand how it fits into your workshop workflow, physical footprint, and production goals. This guide examines the design, assembly considerations, batch manufacturing performance, and overall utility of the feeder system. We will walk through the hardware specifications, how the automated conveying mechanism performs during multi-stage jobs, workshop space considerations, and whether this add-on represents a sensible investment for your current laser setup.

What You Get With the xTool S1 Conveyor Feeder

The xTool S1 Conveyor Feeder is built as an external extension system that connects directly to the laser base, delivering continuous material guidance without complicated retrofits.

• Motorized feeder mechanism engineered specifically for the xTool S1 enclosed laser system
• Modular conveyor rails featuring a tool-free buckle design for straightforward assembly
• Lower position adjustment knob designed for precise manual tracking and stock alignment
• Built-in path planning integration to synchronize laser firing with automated board movement
• Support for hard material lengths reaching up to 39 inches straight out of the box
• Expandable modular architecture capable of handling lengths up to 118 inches using eight pairs of rails
• Compact overall chassis designed for rapid disassembly and minimal shelf storage footprint

Key Specifications

Automated Feeding for Large Format Engraving

Working on oversized stock has historically been one of the biggest challenges for diode laser owners. When working without an automated accessory, attempting an xtool s1 large format engraving project typically requires manual indexing, opening the enclosure, pushing the board forward by hand, and attempting to line up complex cut paths using visual crosshairs. This manual process introduces alignment drift, visible seams across continuous graphics, and wasted material when a board shifts off axis midway through a burn.

The xTool S1 Conveyor Feeder completely changes this dynamic by functioning as an automated xtool s1 passthrough feeder. Instead of relying on manual shoves, the motorized mechanism grabs the stock and feeds it forward under software control. Because the automated system coordinates motion directly with the laser head, long banners, family name boards, and extended wall art can be burned across multiple linear feet without stopping to align overlapping vector graphics by eye.

While larger floor units like the xTool P2 laser offer their own pass-through setups, having an automated system on an enclosed diode platform gives desktop users a realistic avenue for oversized manufacturing. By handling lengths up to 39 inches right away on rigid boards, you can tackle sign making jobs that simply cannot fit inside a standard enclosed work area.

Workshop Footprint and Rail Setup Mechanics

Adding any motorized pass-through hardware requires careful consideration of bench space and assembly time. The main chassis of the unit measures 26.85 by 10.79 by 7.87 inches and weighs 16.17 pounds, making it a substantial piece of equipment that demands dedicated tabletop space in front of and behind your laser enclosure. For a smooth xtool s1 conveyor setup, you must ensure your table is deep enough to support not just the feeder itself, but also the full overhang of the materials rolling through the system.

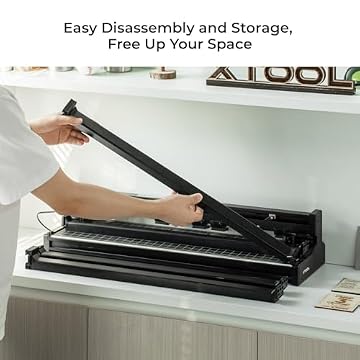

Where the hardware shines is in its assembly approach. The system uses an interlocking buckle design that allows the conveyor rails to snap into place without wrestling with bags of loose screws or complex brackets. When you finish a run of long signs and need your regular desktop space back, the buckle mechanism unlatches quickly, letting you break down the rails and stash the components on a storage shelf with minimal effort.

Fine-tuning material tracking is another common worry on long pass-through runs. If a board enters even slightly crooked, that angle magnifies across several feet of travel. To counter this, the feeder incorporates a lower adjustment knob directly on the chassis. This knob gives you manual mechanical control to straighten and square the workpiece before the automated job sequence begins, keeping your burn lines parallel to the edge of the board.

Precision Path Planning for Batch Engraving

Beyond single giant signs, using the xtool s1 conveyor for batch engraving provides a huge boost to daily workshop productivity. In a standard setup, batching dozens of identical coasters, keychains, or plant stakes involves loading a tray, running the job, clearing the bed, and reloading another blank slate. This cycle keeps the operator tethered to the machine to swap materials every few minutes.

With this xtool s1 automatic conveyor running, the production dynamic shifts toward continuous manufacturing. By feeding a continuous strip of plywood, acrylic, or leather through the unit, the machine advances the stock automatically after each grouping finishes. The listing highlights that automating both the engraving path planning and material conveying avoids manual handling errors, substantially enhancing overall engraving precision and resulting in clean, uniform products.

Eliminating physical touchpoints between consecutive items removes the risk of bumping the laser frame or nudging the origin point. For small businesses fulfilling corporate gifts or holiday craft orders, this automated workflow transforms tedious manual reloading into a semi-autonomous operation where the laser keeps working uninterrupted.

Rigid Material Feeding and Modular Rail Limits

Understanding the exact xtool s1 conveyor specs is critical when matching your planned projects to the physical hardware. The standard configuration directly supports hard material lengths up to 39 inches. For rigid boards like baltic birch plywood, pine planks, or dense acrylic sheets, this provides plenty of headroom for standard home decor, tall door signs, and custom furniture accents.

If your ambitions extend even further, the feeder can expand to an enormous 118 inches in length and 18.5 inches in width. However, reaching that massive 118-inch capacity requires eight pairs of conveyor rails. Buyers planning ultra-long jobs like commercial exterior signs or full-length structural trim need to be aware of this rail requirement, as the baseline package will not extend to nearly ten feet without additional rail pairs on hand.

It is also worth noting what the manufacturer listing does not disclose. While the length support up to 39 inches and expandable dimensions up to 118 by 18.5 inches are clearly documented, the listing does not specify the maximum material thickness or maximum weight threshold supported by the grip rollers. Makers working with extra-thick dimensional lumber should remain cautious and verify board clearances before feeding heavy slabs into the rollers.

xTool S1 Conveyor Feeder Pros and Cons

Check xTool S1 Conveyor Feeder on Amazon

Is the xTool S1 Conveyor Feeder Worth It

Deciding whether the xTool S1 Conveyor Feeder makes sense comes down to what you produce on a weekly basis. If your laser projects consist primarily of small decorative ornaments, tumblers, and single-sheet crafts that sit comfortably inside the standard bed, the feeder will simply take up valuable bench space without adding meaningful utility. In that scenario, sticking with standard honeycomb or flat cutting beds is the most practical choice.

Conversely, for makers running an active Etsy storefront, craft business, or sign-making studio, the answer to whether is xtool s1 conveyor worth it leans heavily toward yes. The ability to automate material feed eliminates the single most error-prone stage of large-format diode laser work: manual repositioning. Being able to burn clean graphics across a 39-inch board in one continuous operation unlocks product categories that standard laser beds cannot touch.

Ultimately, this accessory serves as a productivity multiplier rather than a casual novelty. The quick buckle disassembly means you do not have to commit your workbench to it permanently, but when long sign orders or high-quantity batch runs arrive, the automated path coordination pays for itself in saved time and scrapped materials.

Other Options to Consider

Partner for Accurately Automatic Engraving is designed specifically for the xTool P3 laser 80W CO2 machine and covers a 24.01-inch by 51.18-inch work area, making it the appropriate choice for commercial shops operating high-powered CO2 hardware rather than the S1 diode platform.

AtomStack R7 Pro Conveyor Feeder is built exclusively for AtomStack laser systems including The Hurricane and Kraft, making it the ideal alternative for users who already own AtomStack equipment and want automated batching and large-object expansion within their existing brand ecosystem.

Spiral Conveyor Feeder is an industrial 1500W electric screw auger machine built for moving bulk materials like grain, sand, cement, and fertilizer, serving agricultural and construction jobs rather than delicate craft workshop laser engraving.
