Midea U-Shaped Inverter Window AC Review: Is the Split Design Worth It?

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Finding a window air conditioner that cools effectively without rattling window frames or drowning out conversation is a persistent challenge for homeowners. Traditional box-style units place the heavy, vibrating compressor directly inside the window opening, channeling noise straight into the living space. The Midea U-Shaped Inverter AC directly solves this layout problem by splitting the indoor blower from the outdoor mechanical components with a deep central channel. This design allows your window sash to slide down into the gap, effectively isolating the loud mechanical components on the outside of your wall while maintaining a secure barrier against heat and ambient outdoor noise.

This review evaluates the 10,000 BTU model to determine whether its unconventional chassis and inverter compressor justify the more involved installation process. We examine how the physical split design affects day-to-day noise levels, how the specialized mounting bracket works with standard double-hung and single-hung windows, and whether the energy-saving claims hold up under typical cooling demands. For readers comparing modern cooling options, understanding how this unit compares to standard builds or an lg dual inverter air conditioner will clarify whether this split-body design meets your specific cooling priorities.

What You Get With the Midea U-Shaped Inverter AC

The Midea U-Shaped Inverter AC package includes the primary cooling appliance along with specialized mounting hardware designed specifically for split-chassis window support. Because the window sash descends directly through the center of the air conditioner, standard accordion side panels cannot be used, requiring dedicated bracket arms and sealing materials.

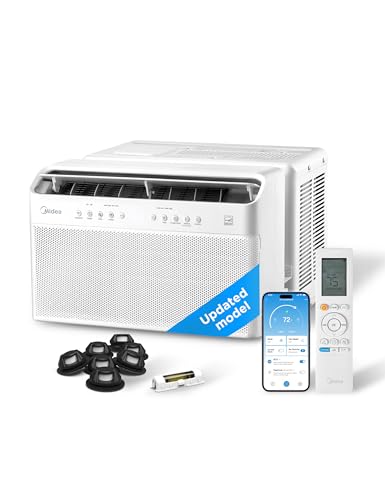

• Midea 10,000 BTU U-shaped smart inverter air conditioner unit
• Quick-snap exterior support bracket with adjustable sidearms
• Anti-theft window locking mechanism for security when closed
• Full-function remote control
• Washable dust filter screen
• Wi-Fi connectivity module supporting the SmartHome application
• Window sealing foam blocks and installation hardware

Key Specifications

The technical specifications demonstrate how the inverter drive system and physical dimensions interact with residential window frames. Reviewing these measurements ensures your window opening meets the physical tolerances required for installation.

Acoustic Isolation and Low Noise Operation

The primary engineering achievement of this unit is its acoustic dampening. Conventional window air conditioners place the motor, condenser, and compressor inside a single shared metal housing that spans your window sill. When the compressor kicks on, mechanical vibration transfers through the frame, and the sound radiates directly into the room. The Midea U-shaped ac noise level drops as low as 32 dBA because the rotary vane compressor sits completely outside the window pane. Closing the window down into the U-channel turns your existing double-pane or single-pane glass into an acoustic barrier that blocks the bulk of the mechanical hum.

In addition to physical barrier dampening, the DC inverter drive avoids the jarring on-and-off cycling common to standard units. Traditional single-speed compressors repeatedly slam on at full blast to drop the room temperature, run at maximum volume, and abruptly shut down once the set point is reached. The inverter system adjusts motor speed dynamically, slowing the compressor down to maintain a steady temperature rather than stopping completely. This consistent, low-frequency hum eliminates the sharp volume spikes that frequently disrupt sleep, making it an excellent midea u-shaped ac for bedroom installations.

Airflow design also contributes to quieter operation. The interior blower is engineered to disperse air across spaces up to 450 square feet without producing high-pitched buffeting sounds. By handling air movement gently on the indoor side and pushing high-pressure compression tasks past the exterior sill, the unit maintains comfortable cooling without interrupting media playback or phone calls.

Window Bracket Mounting and Structural Security

Installing a split-chassis unit differs significantly from mounting a standard window box. The midea u-shaped window ac installation depends entirely on the included quick-snap bracket to bear the 56.9-pound weight of the appliance. Unlike standard installations where the window sash holds the top edge of the unit in place, this system requires the support bracket to be leveled, adjusted, and anchored to the exterior wall before the air conditioner is ever lifted into the frame. The bracket features extendable arms that press against the exterior siding, creating an independent platform that supports the heavy outdoor half.

Once the midea u-shaped window ac bracket is secured, the air conditioner slides into position over the sill. The window frame must satisfy clear physical boundaries: the window width must measure between 22 and 36 inches, with a minimum vertical clearance of 13.75 inches. The sash then closes down inside the central channel, resting between the indoor and outdoor sections. This design eliminates the risk of the air conditioner tipping backward out of the window during seasonal opening and closing.

Security concerns are addressed through a dedicated anti-theft mechanism. Homeowners frequently worry that an unlocked or partially open window compromises ground-floor safety. When the window sash is lowered into the channel, the included locking hardware secures the window to prevent unauthorized individuals from sliding the sash upward from the outside. Open gaps on either side of the chassis are sealed using custom-cut foam blocks that prevent outdoor air and insects from passing through the open track.

Inverter Efficiency and Power Consumption

Efficiency is a substantial advantage of the midea u-shaped ac energy efficiency profile. The DC inverter system enables the unit to achieve over 35% energy savings compared to traditional fixed-speed window units. Because fixed-speed units draw high inrush currents every time the compressor starts up, they waste significant energy during frequent start-stop cycles. The Midea rotary vane inverter ramps up gradually, drawing only the electrical power necessary to meet current thermal loads, earning it ENERGY STAR certification.

Electrical draw is rated at 890 cooling watts with an AHAM rated cooling amperage of 9.97 amps on standard 115-volt residential circuits. For consumers cooling mid-sized living rooms or studio apartments up to 450 square feet, this modest electrical footprint reduces strain on shared household circuits. The copper core material maximizes heat exchange efficiency across the coils, while the use of modern R-32 refrigerant provides superior thermal properties compared to older chemical blends. Readers evaluating overall capacity can explore the midea 8,000 btu smartcool window air conditioner to see how smaller motor configurations compare across varying room dimensions.

Beyond steady-state temperature control, the system includes dedicated dehumidifier and fast-cooling settings. When elevated humidity makes an interior space feel warmer than the thermometer indicates, the dehumidification mode extracts ambient moisture to improve comfort without excessively chilling the room. The dust filter ensures airborne particles do not coat the internal copper coils, preserving high heat transfer rates across multiple cooling seasons.

Smart Connectivity and Window Usability

A key limitation of traditional window units is that they permanently block the window until autumn removal. With this split chassis, the U-shaped opening permits the window sash to be raised whenever outside weather is pleasant, allowing fresh air into your home without unmounting the air conditioner. You can open the sash to catch a cool morning breeze and close it back down into the sealing channel as afternoon temperatures rise, all while keeping the appliance firmly seated in its bracket.

Operational control is managed through several interfaces. On-chassis buttons handle direct adjustments, while the included remote control provides quick setting changes from across the room. For networked homes, the midea u-shaped smart ac app enables control through iOS and Android devices via local Wi-Fi. The application allows homeowners to adjust target temperatures, switch modes, and configure operation schedules remotely so the room is pre-cooled before returning home.

Voice command support extends control to Amazon Alexa and Google Assistant ecosystems. Integrating the appliance into a smart home network enables hands-free operation from adjacent rooms. If you are comparing different implementations of this chassis design, our comprehensive breakdown of the midea u shaped air conditioner platform covers the practical usability of these digital controls across various living environments.

Midea U-Shaped Inverter AC Pros and Cons

Check Midea U-Shaped Inverter AC on Amazon

Is the Midea U-Shaped Inverter AC Worth It

Determining if the Midea U-Shaped Inverter AC is the right investment depends primarily on your tolerance for window unit noise and your window architecture. If you are installing an air conditioner in a bedroom, nursery, or home office where continuous compressor droning interferes with rest or focus, the 32 dBA sound rating and acoustic barrier design provide an immediate, tangible improvement over standard window units. The inverter compressor delivers smooth, consistent temperatures, and the ability to open the window for natural ventilation provides unmatched everyday flexibility.

However, this model is not an ideal match for every household. At 56.9 pounds, lifting and aligning the unit over the sill requires moderate physical strength, and the installation process demands precise bracket leveling that takes considerably more time than sliding a standard unit into place. Windows narrower than 22 inches, wider than 36 inches, or those with non-standard sills will not accommodate the proprietary bracket without modification. Furthermore, if you only run your air conditioner for a few days each summer, the efficiency gains and advanced smart features may exceed your practical needs.

For individuals who run cooling equipment continuously throughout the summer across rooms up to 450 square feet, the energy savings and quiet operation make this model an exceptional option. It bridges the performance gap between loud, traditional window units and expensive mini-split installations, delivering whisper-quiet cooling within a self-contained window platform.

Other Options to Consider

Frigidaire 5,000 BTU Window-Mounted Air suits shoppers who need basic cooling for small rooms up to 150 square feet and prefer a lighter, standard-mount unit that handles effortless temperature control with simple mechanical installation.

4‑in‑1 Window Mounted AC Heater serves buyers seeking year-round climate management, combining 8,000 BTU cooling with integrated heating, fan, and dehumidifier functions for versatile seasonal use.

GE Window Air Conditioner 5,000 provides an accessible option for compact living areas up to 150 square feet, featuring straightforward manual controls, two cooling modes, and an easy installation kit without smart app overhead.
